Product Information




Open type NEX-200GC

Feature

  • Combined use of intake and exhaust
Product inquiry List view

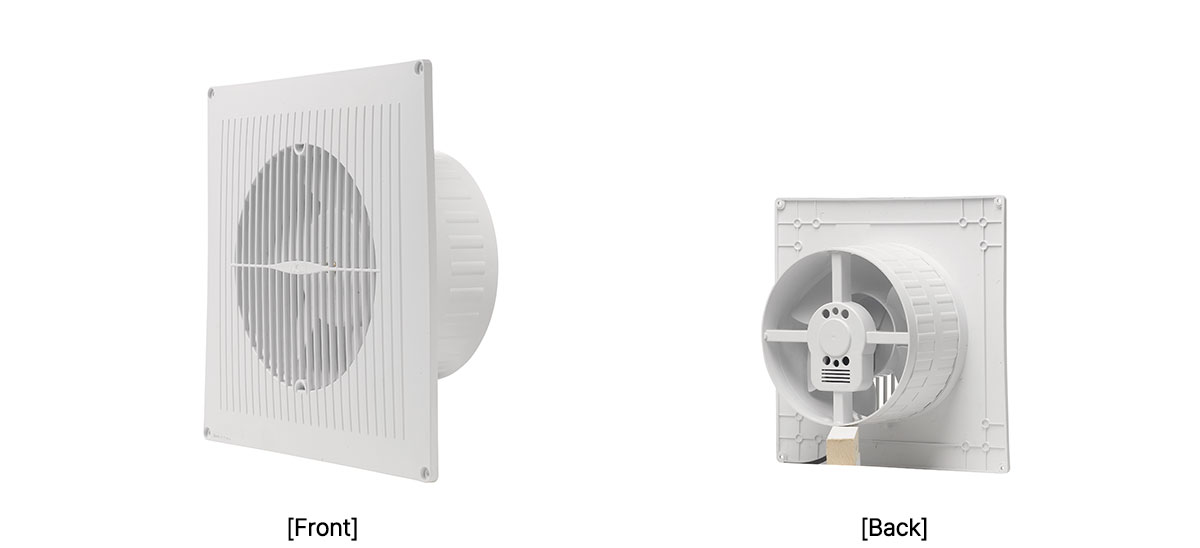

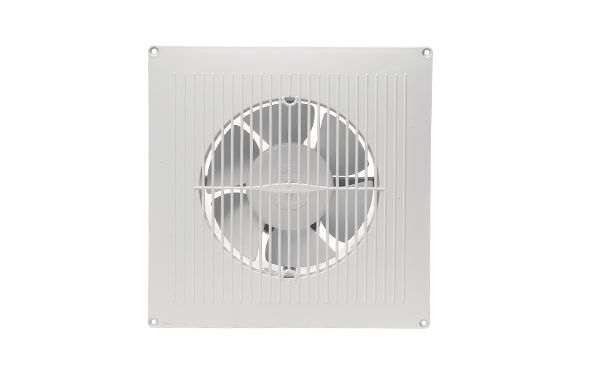

Detailed image

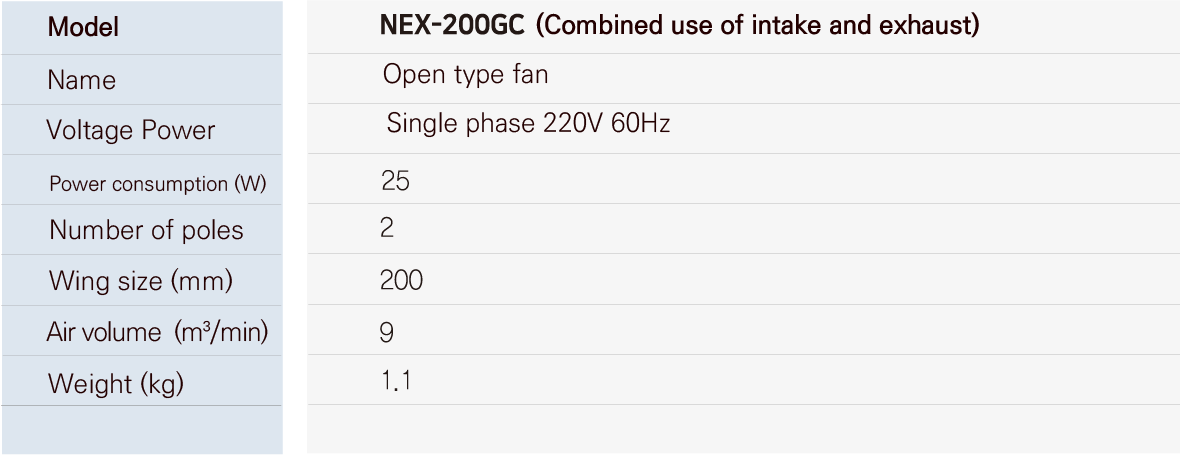

Specifications and performance

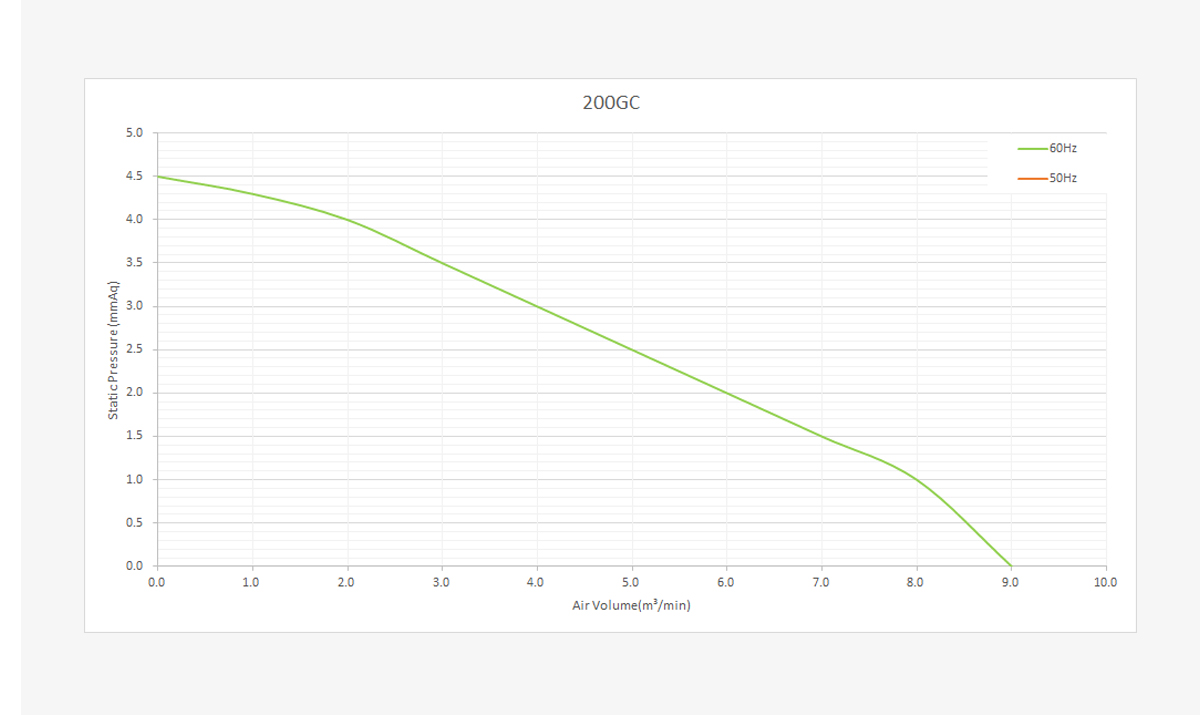

Performance curve

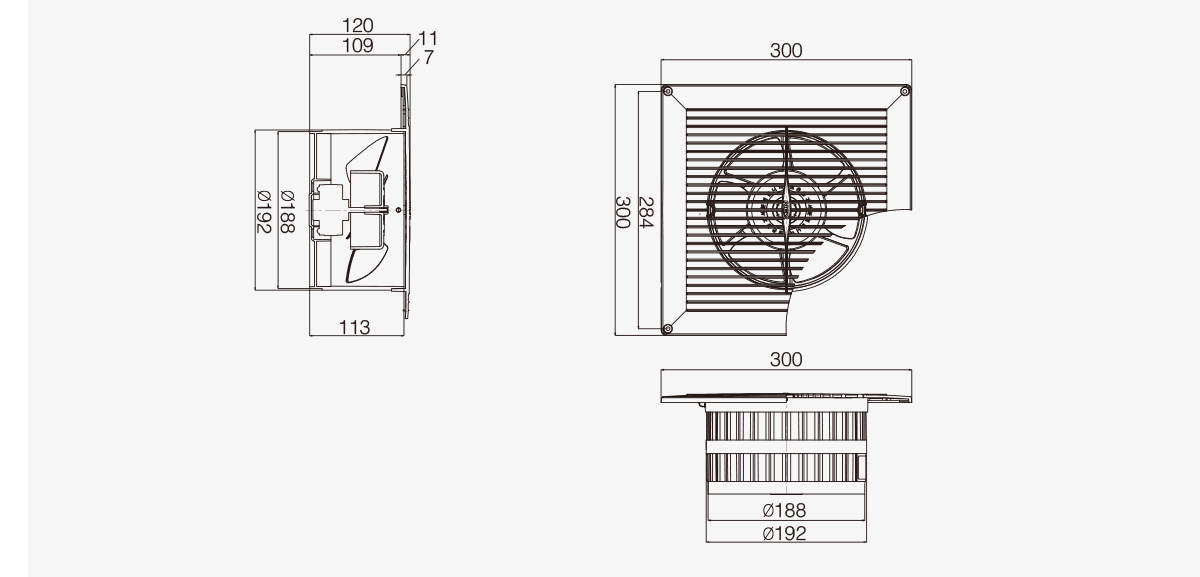

Dimensions (mm)

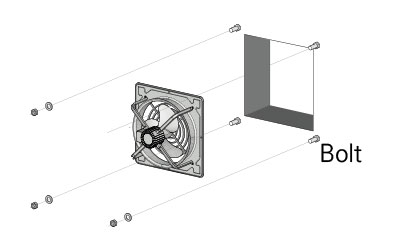

Installation

  • 1.Fix the reinforcing neck to the structure *Fix the reinforcing neck according to the ventilation fan specifications (not for sale) *Install a separate external screen (not for sale)
  • 2.Secure the reinforcing neck and ventilator with the attached screws to prevent them from moving
  • 3.Perpendicular to the wall
  • 4.Connect the power safely after confirming that the breaker is OFF
  • 5.Recommended installation size (mm) 220x200 or 220Ø
