Product

Product Information

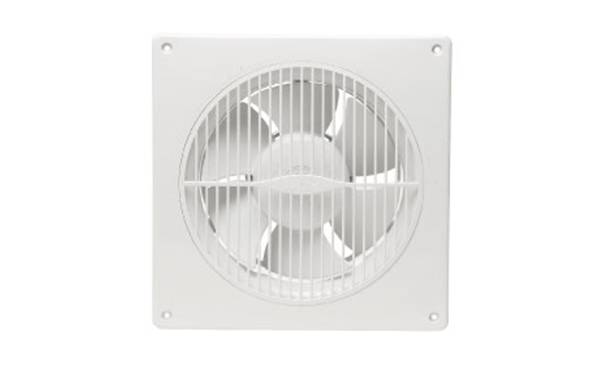

Open type NEX-200G

Feature

  • Ball bearing motor
  • Safety fuse
  • 1m power plug
  • 2-stage pull switch
Product inquiry List view

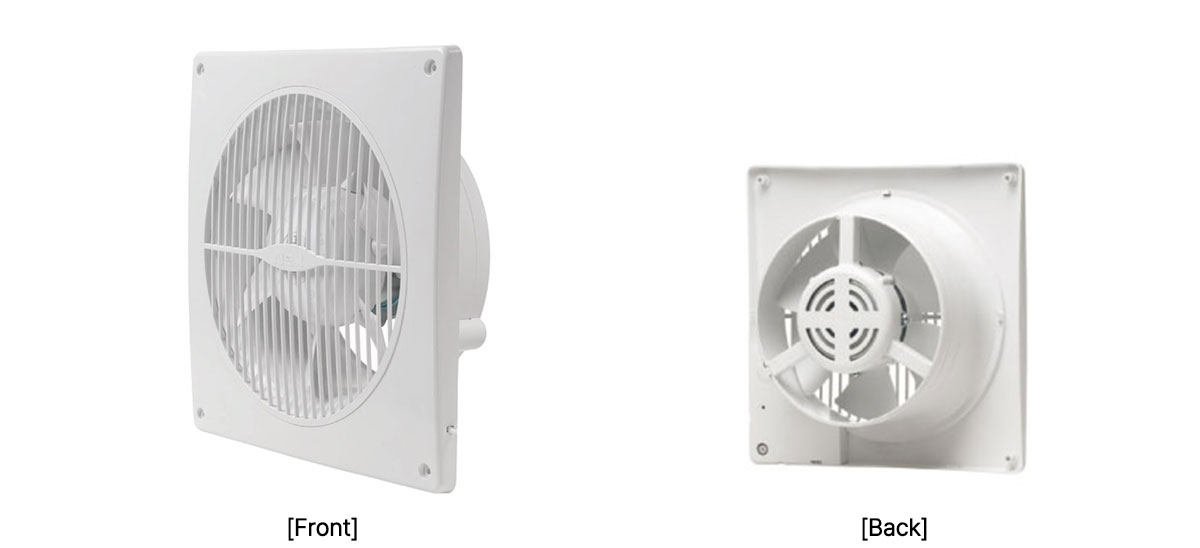

Detailed image

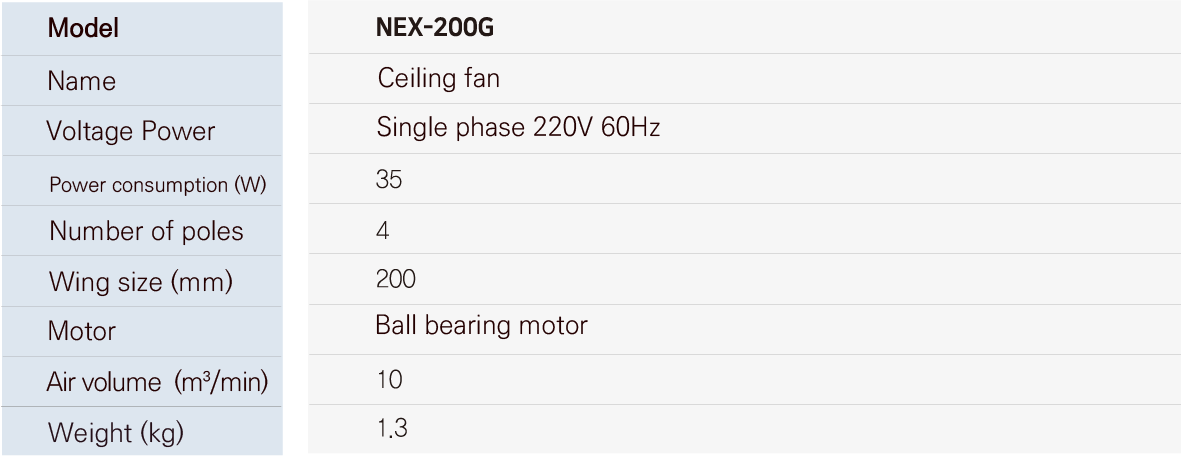

Specifications and performance


Performance curve



Dimensions (mm)

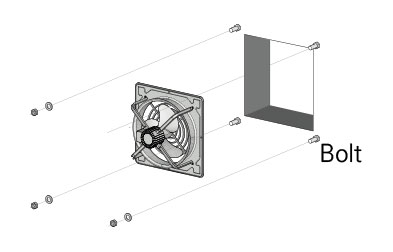

Installation

  • 1.Fix the reinforcing neck to the structure *Fix the reinforcing neck according to the ventilation fan specifications (not for sale) *Install a separate external screen (not for sale)
  • 2.Secure the reinforcing neck and ventilator with the attached screws to prevent them from moving
  • 3.Perpendicular to the wall
  • 4.Connect the power safely after confirming that the breaker is OFF
  • 5.Recommended installation size (mm) 255x255 or 230Ø/li>
