Product Information

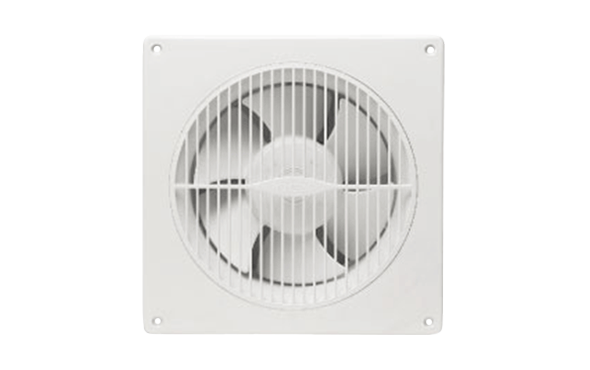

Automatic wind pressure shutter type NEX-150GS

Feature

  • Safety fuse

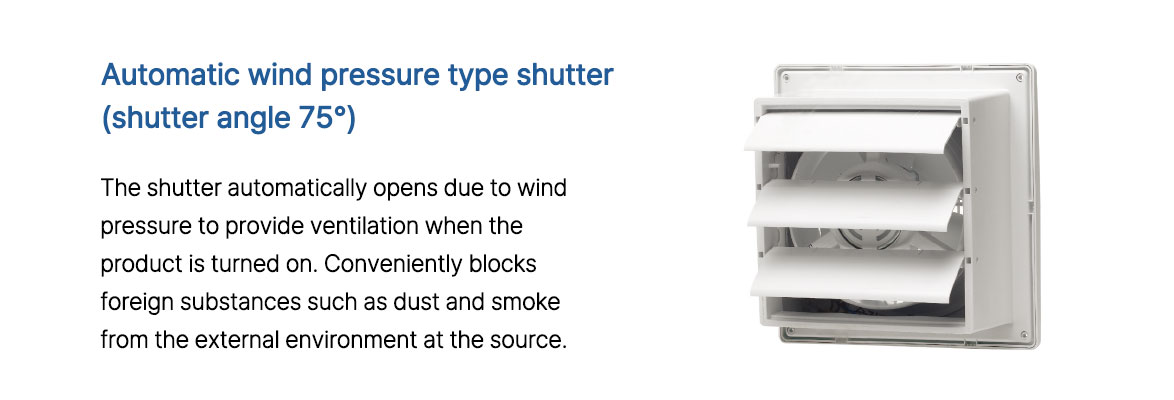

  • Automatic wind pressure type shutter (shutter angle 75°)

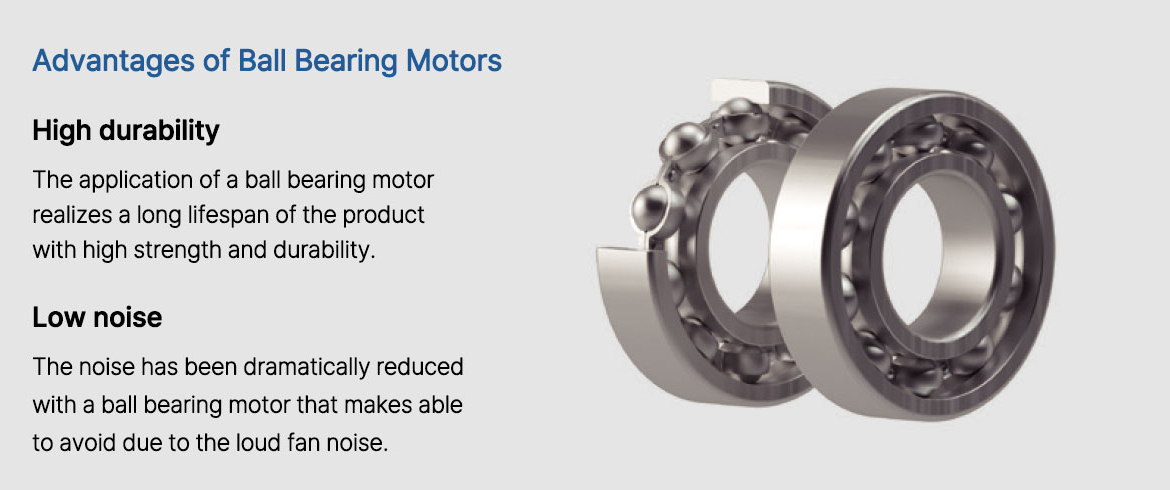

  • Ball bearing motor
  • 1m power plug
  • 2-stage pull switch
Product inquiry List view

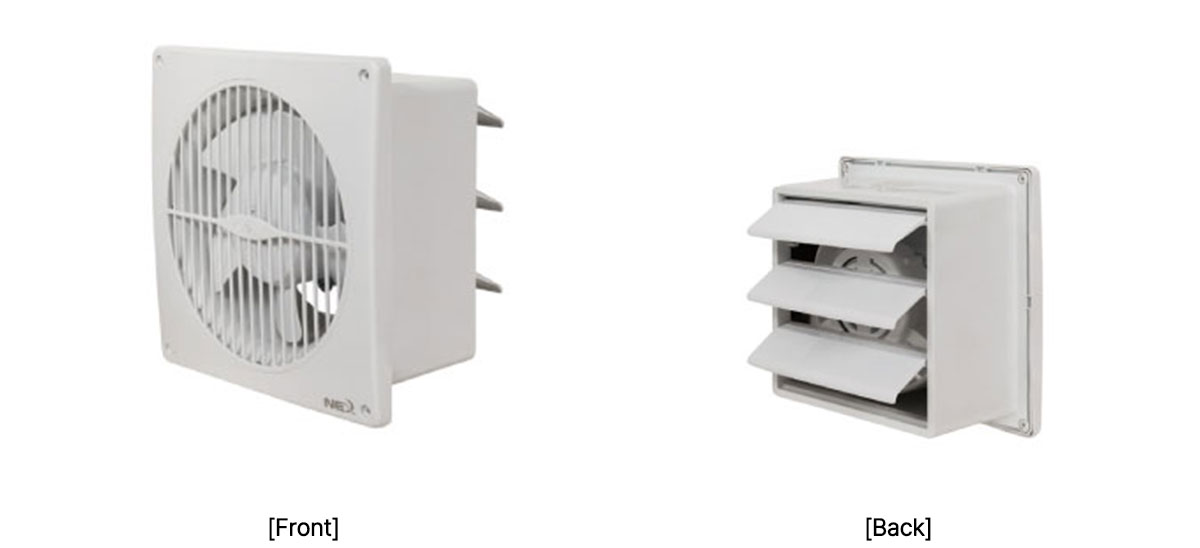

Detailed image

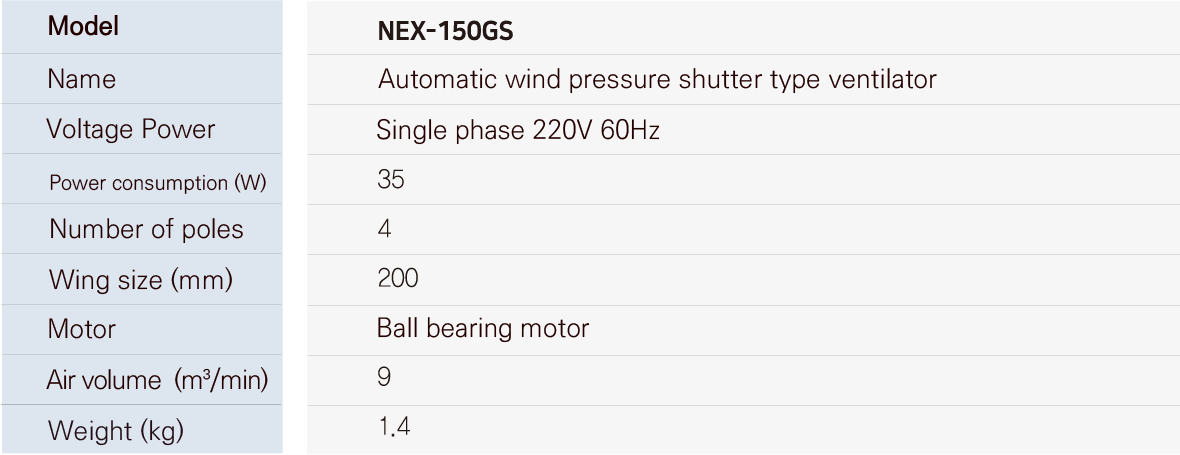

Specifications and performance

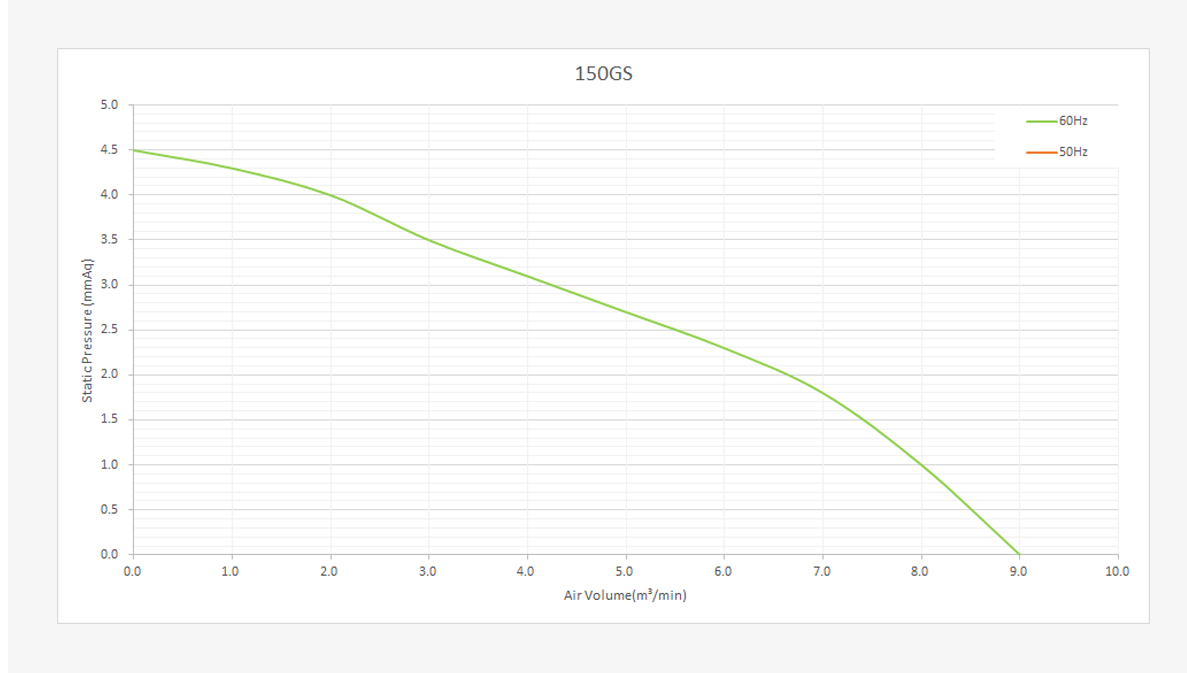

Performance curve

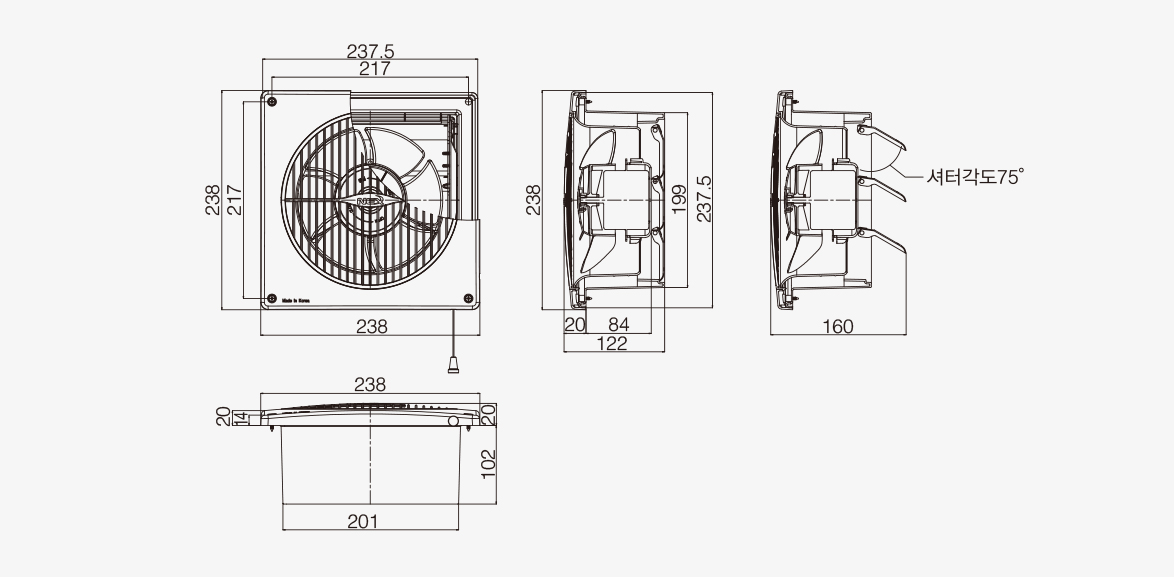

Dimensions (mm)



Installation

  • 1.Fix the reinforcing neck to the structure *Fix the reinforcing neck according to the ventilation fan specifications (not for sale) *Install a separate external screen (not for sale)

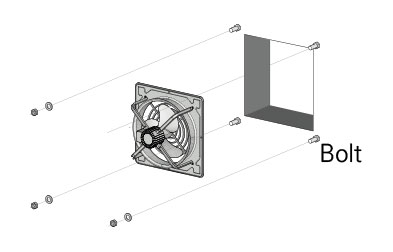

  • 2.Secure the product to the reinforcing neck *Fix firmly with the attached screws
  • 3.Perpendicular to the wall
  • 4.Do not install within the larynx (causing shortened product lifespan)
  • 5.Install more than 70cm away from the ceiling wall and more than 1.5m away from gas ranges and all heating products
  • 6.In closed places, exhaust performance deteriorates, so secure an intake (entrance, window) larger than the diameter of the wing on the other side of the ventilation fan.
  • 7.Connect the power safely after confirming that the breaker is OFF.
  • 8.Recommended installation size (mm) 260X206
