Product

Product Information

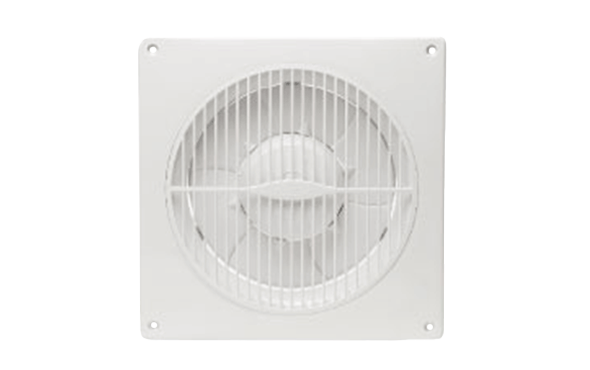

Automatic opening NEX-250GA

Feature

  • Safety fuse

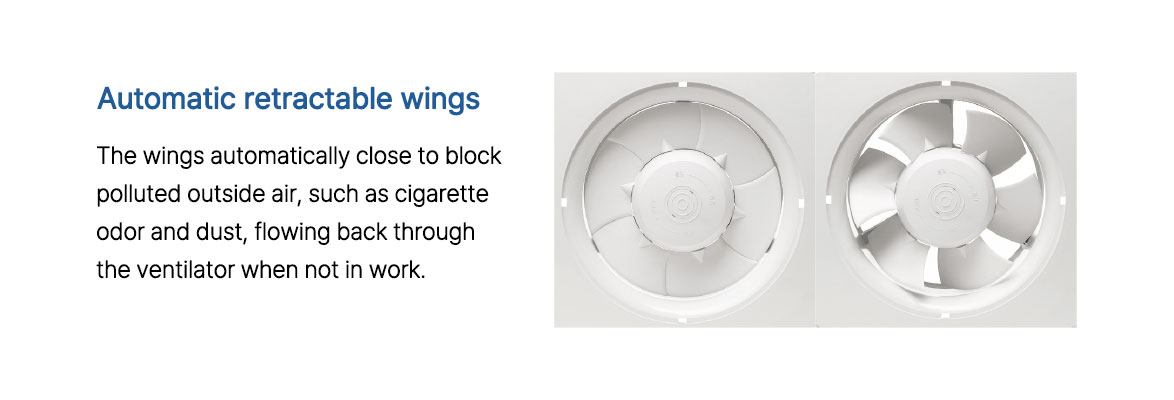

  • Automatic opening/closing vane

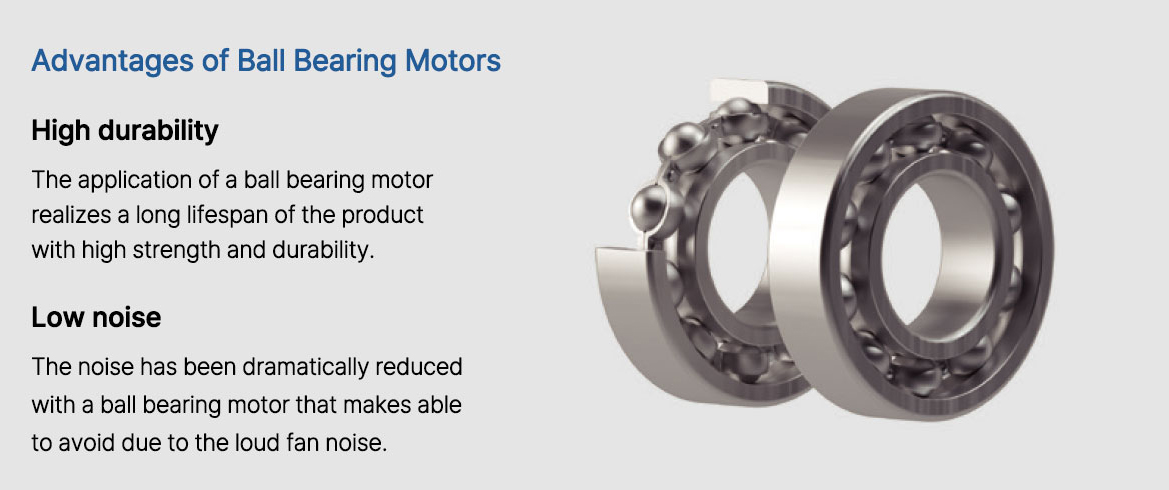

  • Ball bearing motor
  • 1m power plug
  • 2-stage pull switch
Product inquiry List view

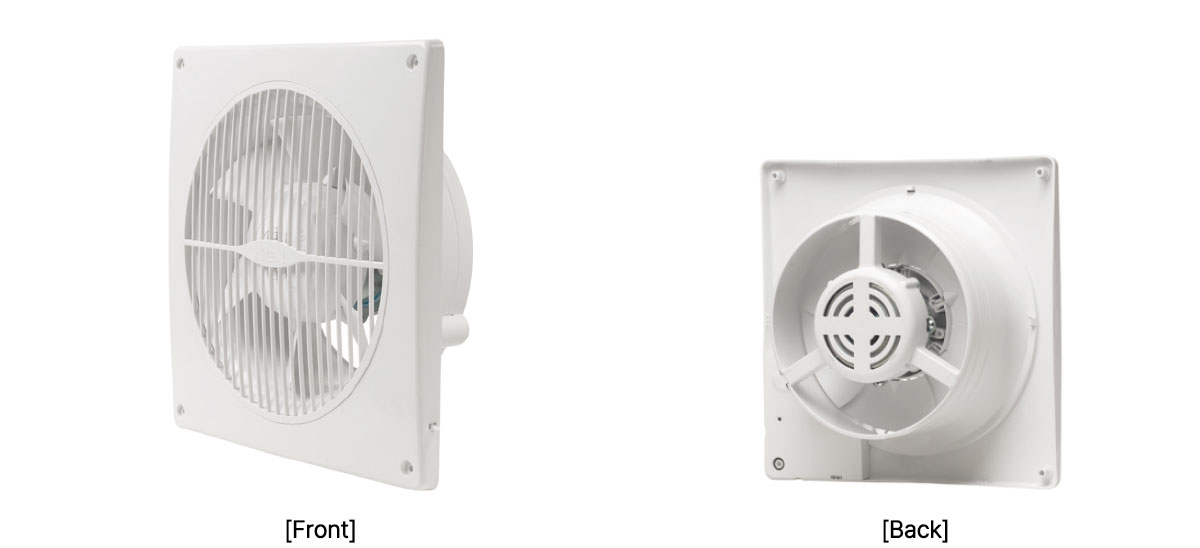

Detailed image

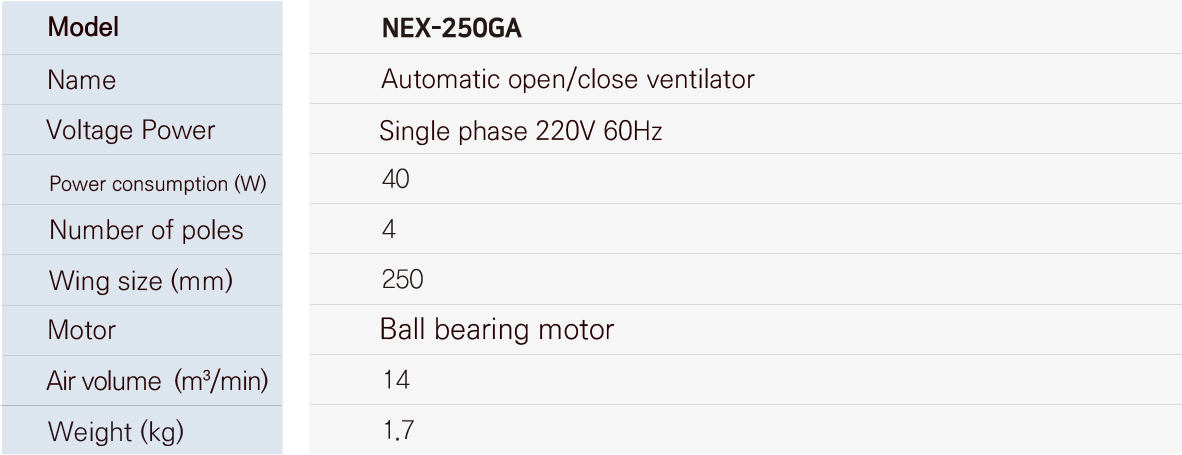

Specifications and performance



Performance curve

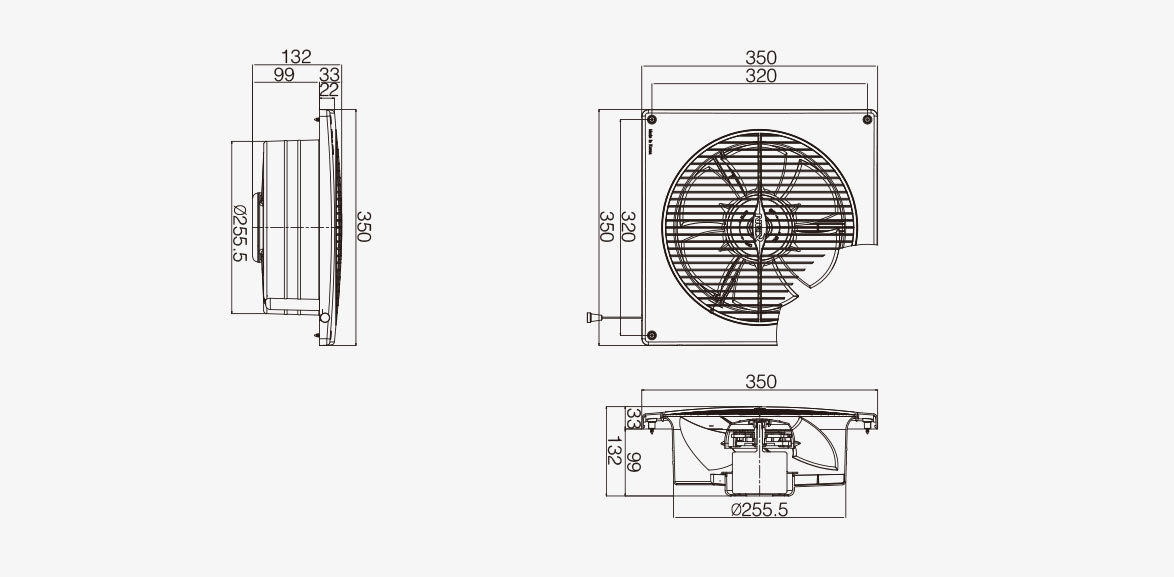

Dimensions (mm)

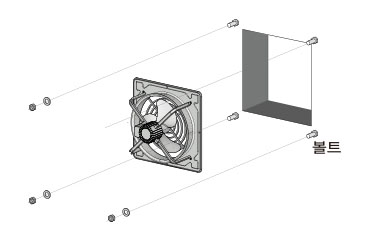

Installation

  • 1.Fix the reinforcing neck to the structure *Fix the reinforcing neck according to the ventilation fan specifications (not for sale) *Install a separate external screen (not for sale)
  • 2.Secure the product to the reinforcing neck *Fix firmly with the attached screws
  • 3.Perpendicular to the wall
  • 4.Connect the power safely after confirming that the breaker is OFF
  • 5.Recommended installation size (mm) 280x280 or 285Ø
